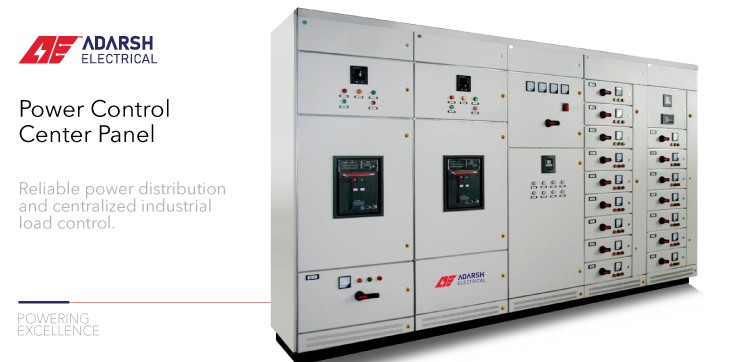

Power Control Center (PCC) Panel
The PCC Panel is designed for reliable power distribution and centralised control of high-capacity loads. It houses protection and switching devices to manage power across industrial systems efficiently. Suitable for heavy-duty applications, it offers safe operation, easy maintenance, and future-ready scalability.
Power Control Center (PCC) Panel
The PCC Panel is designed for reliable power distribution and centralised control of high-capacity loads. It houses protection and switching devices to manage power across industrial systems efficiently. Suitable for heavy-duty applications, it offers safe operation, easy maintenance, and future-ready scalability.
Parameter
Specification
Rated Voltage
415V / 690V/3300V AC, 3-Phase
Current Rating
Up to 3200A
Short Circuit
Up to 65kA for 1 sec
Form of Separation
Form 2 / Form 3 / Form 4
Relay Types
Intelligent (Microprocessor-based), Electronic & Electromechanical Relays
Protection Features
Overload, Short Circuit, Earth Fault, Thermal etc..
Control Modes
Local / Remote / Auto Operation
Metering
Multifunction Digital Meters, Power Analysers, Energy Meters
Monitoring
SCADA Compatible, Real-Time Data, Remote Communication (Modbus, Ethernet/IP)
Additional Features
Arc Flash Protection, Interlocking, Maintenance Bypass, Space Provisioning
Cooling Method
Natural Air / Forced Ventilation
Busbar Material
Electrolytic Copper / Aluminium
Enclosure Type
Indoor (IP42/IP54), Outdoor (IP55/IP65) with optional canopy
Construction
CRCA Steel, Powder Coated, Compartmentalized, Arc-Safe
Painting Process
7-Tank Pretreatment with Epoxy/Polyester Powder Coating (RAL shades as required)
